Industrial-grade sight glass assemblies engineered for critical process observation in high-pressure, high-temperature, and corrosive environments. Providing operational transparency where safety and reliability are non-negotiable.
Sight glasses—also known as view ports or observation windows—are precision-engineered components that provide direct visual monitoring of process conditions inside vessels, reactors, tanks, and pipelines. While they may appear straightforward, these are highly sophisticated safety devices designed to withstand extreme operating parameters.
Our sight glass portfolio serves operators who need to verify reaction stages, monitor fluid levels, inspect product quality, confirm phase separation, and observe cleaning efficacy—all without process interruption or vessel opening.
From pharmaceutical cleanrooms to offshore petrochemical platforms, our sight glass solutions deliver the optical clarity and structural integrity required for mission-critical applications across Europe's most demanding industries.

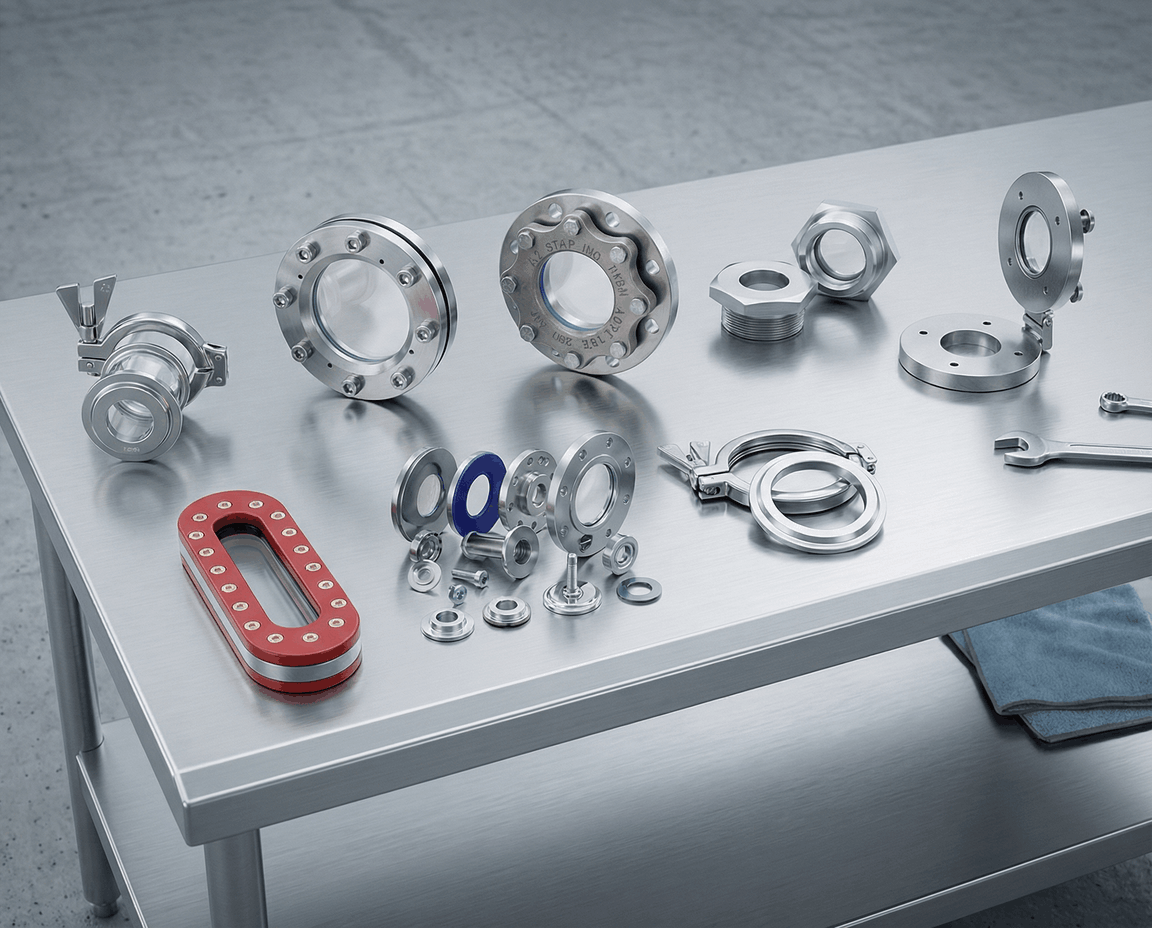

Engineered solutions for every mounting configuration, pressure specification, and hygiene requirement.
Premium mechanically pre-stressed sight glass featuring glass-to-metal fusion technology for maximum safety and pressure resistance.
Direct vessel integration with welded mounting flanges for permanent installation in process equipment.
Flanged sight glass systems for standardized nozzle connections with removable maintenance access.
Hygienic design with quick-open hinged covers for pharmaceutical and food processing applications.
Compact screw-in observation windows for pipe tees, manways, and auxiliary vessel ports.
Extended viewing area configurations for level observation and large-scale process monitoring.
Comprehensive performance parameters for precise application engineering.
Critical visual monitoring across Europe's most demanding process industries.
Reaction monitoring, phase separation verification, and corrosive media observation in reactors and mixing vessels.
Sterile process observation in bioreactors, fermentation tanks, and API synthesis with full GMP compliance.
Hygienic level monitoring in breweries, dairy processors, and beverage production with sanitary tri-clamp designs.
High-pressure hydrocarbon processing, distillation column observation, and storage tank level indication.
Clarification process monitoring, filtration system observation, and chemical dosing tank inspection.
Cell culture monitoring, protein purification observation, and clean-in-place verification.
Polymer reaction tracking, pigment dispersion evaluation, and batch process color verification.
Biogas digester monitoring, biodiesel transesterification observation, and biomass processing inspection.
Six critical parameters for specifying the optimal sight glass for your application.
Determine maximum design pressure and operating temperature range. Fused safety windows are recommended for pressures above 16 bar or applications with significant pressure fluctuations. Temperature extremes require borosilicate or quartz glass materials.
Select mounting style based on vessel design, maintenance access requirements, and installation constraints. Weld-on assemblies offer permanent integration while bolt-on designs enable field replacement.
Assess chemical compatibility for both glass and metal components. Corrosive or abrasive media may require borosilicate glass and duplex stainless steel or exotic alloys. Confirm gasket material compatibility with process conditions.
Specify viewing diameter or area based on observation needs. Level indication requires obround or rectangular windows. Process reaction monitoring benefits from circular fused windows with optimal optical clarity.
Pharmaceutical, food, and biotech applications require sanitary designs with electropolished surfaces, tri-clamp connections, and FDA-compliant materials. Specify surface finish (Ra value) and required certifications.
For explosive atmospheres (ATEX zones), specify zone classification to select appropriate glass type and optional explosion-proof lighting integration. Consider thermal shock resistance for washdown environments.
Our technical team provides application-specific sight glass selection assistance, pressure and temperature calculations, and material compatibility guidance for European process industries.
